SPIRAX SARCO DCV41 Austenitic Stainless Steel Disc Check Valve DN25
Обновлено в 2017 годуОписание
Description The DCV41 is an austenitic stainless steel disc check valve available with either screwed or socket weld end connections. Its function is to prevent reverse flow on a wide variety of fluids for applications in process lines, hot water systems, steam and condensate systems. For oil and gas applications, a Viton seat is available. For water applications an EPDM seat is available. Soft seat versions provide a zero leakage rate or bubble tight shut-off, i.e. they meet EN 12266-1 Rate A, providing a differential pressure exists. Please note that the soft seat options are not available with socket weld ends. The shut-off of the standard valve conforms to EN 12266-1 Rate E. When a heavy duty spring is installed with an EPDM seat, the valve is suitable for boiler feedwater check applications. A high temperature spring version is available to operate at 400 °C.
Файлы для скачивания
| Формат | Файл | Размер | Версия | |
|---|---|---|---|---|
| dwg | dcv41_dn25_sw-6017262_1_webdwg.dwg | 93 KB | AutoCAD 2007 | |
| dwg | dcv1rdwg.dwg | 4 KB | AutoCAD R11/R12 | |
| dwg | dcv41ldwg.dwg | 5 KB | AutoCAD R11/R12 |
Технические характеристики
| Общее | |
| Категория | Оборудование для систем водоснабжения и водоотведения |
| Тип | Трубопроводная арматура |
| Материалы | Сталь |
| Сайт производителя | Перейти |
| Размеры | |
| Высота | 50 mm |
| Ширина | 50 mm |
| Длина | 67 mm |
| Вес | 500 g |
Ещё модели производителя Spirax Sarco
Похожие модели
2025
Клапан балансировочный VB0000P-T 1 1/2ʺ Ду40 Ру16 усиленный
2026
Клапан HBR 4451 ECO PN16
2025
Вентиль для циркуляции ГВС Ду15..25 мм Ру16 бар
2025
Вентиль для циркуляции ГВС Ду15..32 мм Ру16 бар
2025
Клапан балансировочный VB0000P-T 2ʺ Ду50 Ру16 усиленный
2018
MPN-S
2024
MVI Регулятор давления мембранный SE.555
2021
Клапан балансировочный ручной BVL-T 15-50
2021
Клапан балансировочный ручной BVL-F 65-150
2023

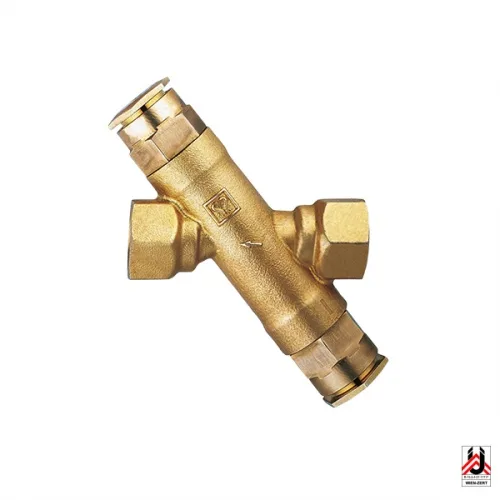

Ограничитель HERZ 4011
