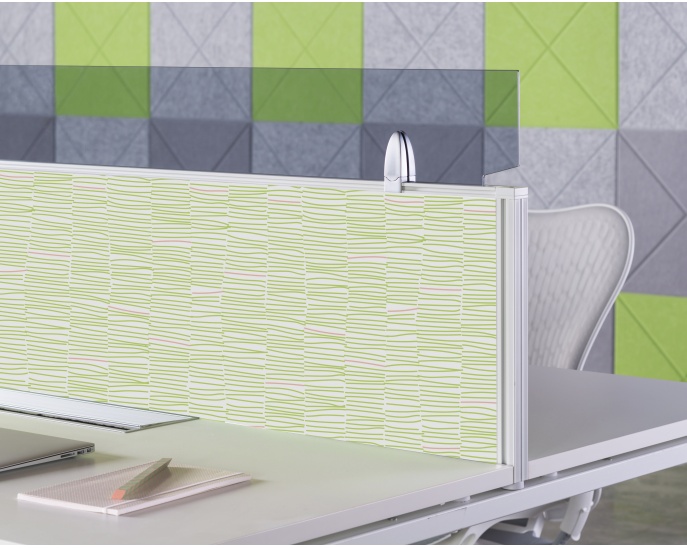

Декоративная панель Woven Image EchoPanel Hammock
Обновлено в 2017 годуОписание
The Woven Image textile range in BIM formats for both Autodesk Revit (.rfa) and Graphisoft ArchiCAD object (.gsm). The textiles are applied to objects that allow you to easily add them to your virtual building models and fit them to your design needs. Files support on the Revit Architecture 2013 or higher, and ArchiCAD 16 or higher Woven Image Textile library for ArchiCAD user
This library in ArchiCAD attribute format (.aat) can be easily loaded via ArchiCAD's attribute manager allowing you to easily add Woven Image's great range to everything from walls to furniture.Download and unzip the files, the zipped files include Woven Image Texture.aat and a Textures folder. Simply add the Woven Image Texture.aat to your library using the Attribute Manager and load Textures folder via the Library Manager. The Woven Image textures will then appear in your Materials selector with full Lightworks render capibilities.This attribute file works with ArchiCAD 16 and higher. Woven Image Textile library for Revit user Woven Image Textile for Revit (.adsklib) can be loaded via Revit Material settings. Download and unzip the files, Simply open the Woven Image material file in the project using the Material Browser and select material. Save Wovenimage Texture folder under C: on user's computer. The Woven Image textiles will then appear in user's Materials selector. If the texture image files are set to physical path, users will receive warning about files cannot be found and need to adjust the image files path.This project file works with Revit Architecture 2013 and higher.
Файлы для скачивания
| Формат | Файл | Размер | Версия | |
|---|---|---|---|---|
| dwg | woven-image-revit-bim---ep-hammock---2d-all-viewsdwg.dwg | 28 KB | AutoCAD 2007 | |
| dwg | woven-image-revit-bim---ep-hammock---3d-dwgdwg.dwg | 50 KB | AutoCAD 2007 | |
| rfa | woven-image-revit-bim---ep-hammockrfa.rfa | 632 KB | Revit Architecture 2013 |
Типоразмеры (5)
| Наименование | Model | Swatch |
|---|---|---|
| EP Hammock 324 | EP Hammock 324 | Woven Image - EP Hammock 324 |
| EP Hammock 383 | EP Hammock 383 | Woven Image - EP Hammock 383 |
| EP Hammock 451 | EP Hammock 451 | Woven Image - EP Hammock 451 |
| EP Hammock 454 | EP Hammock 454 | Woven Image - EP Hammock 454 |
| EP Hammock 554 | EP Hammock 554 | Woven Image - EP Hammock 554 |
Технические характеристики
| Общее | |
| Категория | Технологическое оборудование |
| Тип | Нейтральное оборудование |
| Материалы | Полиэстер |
| Сайт производителя | Перейти |
| Размеры | |
| Высота | 2000 mm |
| Ширина | 12 mm |
| Длина | 1000 mm |
| Вес | 2000 g |
| Общие характеристики | |
| Abrasion | N/A |
| Composition | 100% Recycled Polyester |
| Environmental Upholstery | No |
| Fire Test | AS/NZ 3837 Group 1 |
| Manufacturer | Woven Image |
