NK2-280 Double
Обновлено в 2016 годуОписание

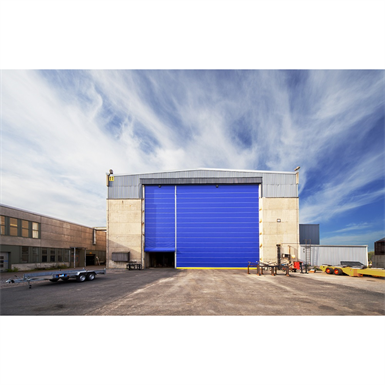

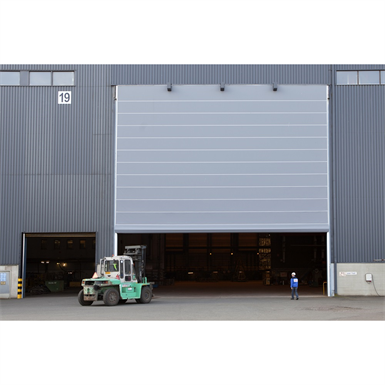

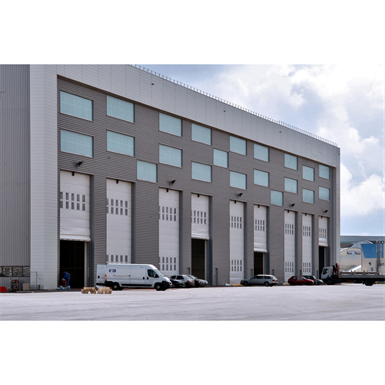

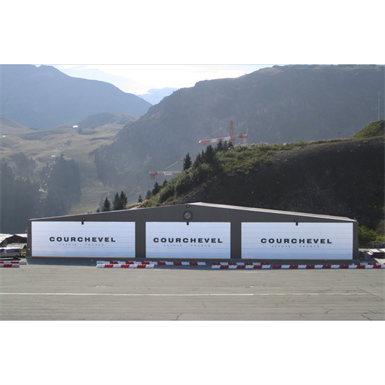

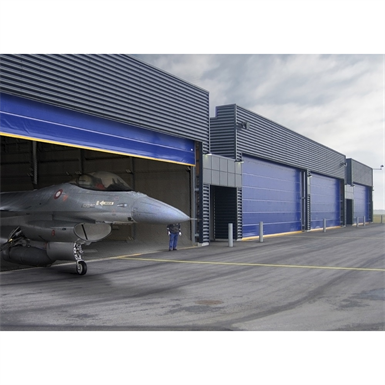

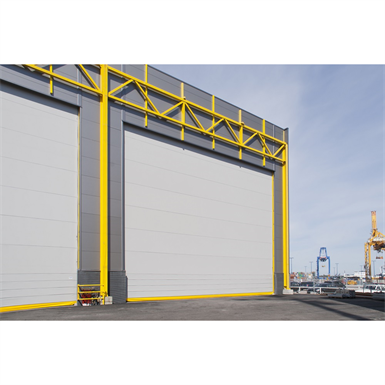

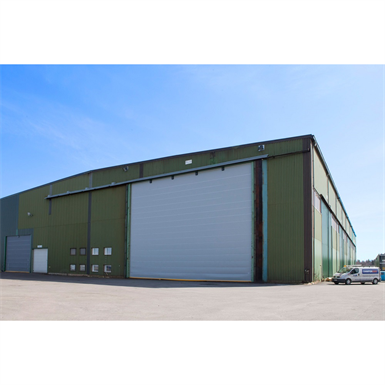

The NK2-280 Double is a 2-ply fold-up door. Due to its rigid 280 mm wide frame construction, it is particularly suitable as a large exterior door, e.g. in dockyards and aircraft hangars The width of a single door can be up to 28 m, and the height 25 m. When using an elevating support post system with multiple doors, the door width is unlimited. The door fabric always comes UV-coated, and it is possible to add burglary prevention mechanisms to it, as well. Windows are also available for this door; or the entire fabric can be partially translucent. A touch screen control panel is one of the accessories available for this door.
Файлы для скачивания
| Формат | Файл | Размер | Версия | |
|---|---|---|---|---|
| rfa | nk2-280-doublerfa.rfa | 5.9 MB | Revit 2015 |
Типоразмеры (2)
| Наименование | CC | Inside Frame | Installation | Outside Frame | Type |
|---|---|---|---|---|---|
| Installation Inside or Outside Door Opening Fabric fold-up door NK2-280 Double | Yes | No | Door installation outside/inside of the door opening. Door installation frame according to the manufacturer's instructions - is not part of the door delivery. | Yes | 0 |
| Installation Within Door Opening Fabric fold-up door NK2-280 Double | No | Yes | directly in the opening | No | 1 |
Технические характеристики
| Общее | |
| Категория | Архитектурные объекты |
| Тип | Ворота |
| Материалы | Ткань, Алюминий |
| Сайт производителя | Перейти |
| Размеры | |
| Высота | 2500 mm |
| Ширина | 2800 mm |
| Длина | 280 mm |
| Вес | 1 g |
| Общие характеристики | |
| Article Number | nk2280d |
| BIMobject Category | Doors |
| BIMobject QR code url | http://championdoor.bimobject.com/nk2280d |
| Built-in safety brake | inside the motor |
| Description 1 | Upper housing and lower beam made of galvanized steel, side guide rails and horizontal stiffeners made of anodized aluminium |
