Формат	Файл	Размер	Версия
lcf	trimotermlcflcf.lcf	2.1 MB	—
rfa	ftv---vr--ac---acusticrfa.rfa	636 KB	Revit 2014

Наименование	Air permeability (C [m3/Pa*s]; n)	Airborne sound insulation Rw (C:Ctr)	Constraints	Core Density (kg/m3)	Fire Resistance	Internal Facing	Thermal influence of the longitudinal join ΔU (W/mK)	Thermal transmittance U [W/m2K]	Use	Weight (kg/m2)
Power S 240	n = 3.0, C = 0.0000000011	32(-1;-2)	Width=600 or 1200mm; Lenght - 14000mm	114	EI240	Steel sheet, stainless steel, thickness 0.5, 0.55, 0.6, 0.7	0.001	0.17	EXTERNAL WALLS, INTERNAL WALLS, ROOFS, CEILINGS	37.7
Power S 200	n = 3.0, C = 0.0000000011	32(-1;-2)	Width=600 or 1200mm; Lenght - 14000mm	114	EI240	Steel sheet, stainless steel, thickness 0.5, 0.55, 0.6, 0.7	0.001	0.21	EXTERNAL WALLS, INTERNAL WALLS, ROOFS, CEILINGS	33.1
Power S 172	n = 3.0, C = 0.0000000011	32(-1;-2)	Width=600 or 1200mm; Lenght - 14000mm	114	EI180	Steel sheet, stainless steel, thickness 0.5, 0.55, 0.6, 0.7	0.002	0.24	EXTERNAL WALLS, INTERNAL WALLS, ROOFS, CEILINGS	30
Power S 133	n = 3.0, C = 0.0000000011	32(-1;-3)	Width=600 or 1200mm; Lenght - 14000mm	114	EI120	Steel sheet, stainless steel, thickness 0.5, 0.55, 0.6, 0.7	0.003	0.31	EXTERNAL WALLS, INTERNAL WALLS, ROOFS, CEILINGS	25.5
Power S 120	n = 3.0, C = 0.0000000011	32(-1;-3)	Width=600 or 1200mm; Lenght - 14000mm	114	EI120	Steel sheet, stainless steel, thickness 0.5, 0.55, 0.6, 0.7	0.003	0.34	EXTERNAL WALLS, INTERNAL WALLS, ROOFS, CEILINGS	24

Общее
Категория	Архитектурные объекты
Тип	Фасады
Материалы	Сталь оцинкованная
Сайт производителя	Перейти
Общие характеристики
Analytic Construction	<None>
Certificate	CE, FM 4881, LPCB
Coating	Standard coating polyester, also PVDF, PUR, PVC, FoodSafe available
Color - Back	RAL 9006
Color - Front	RAL 9006

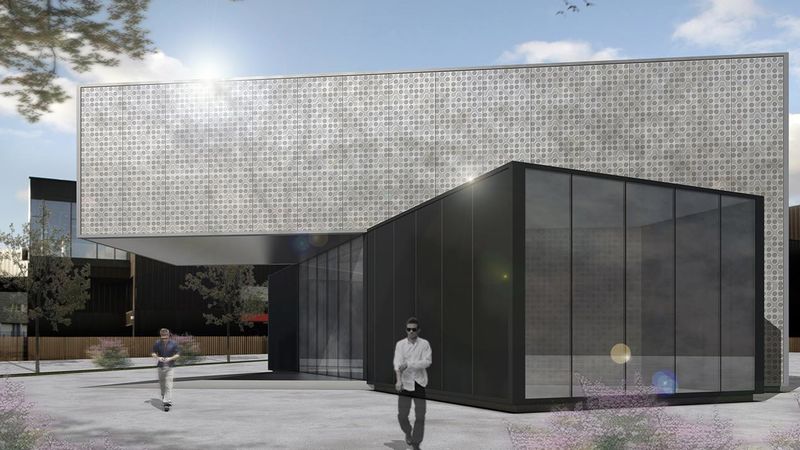

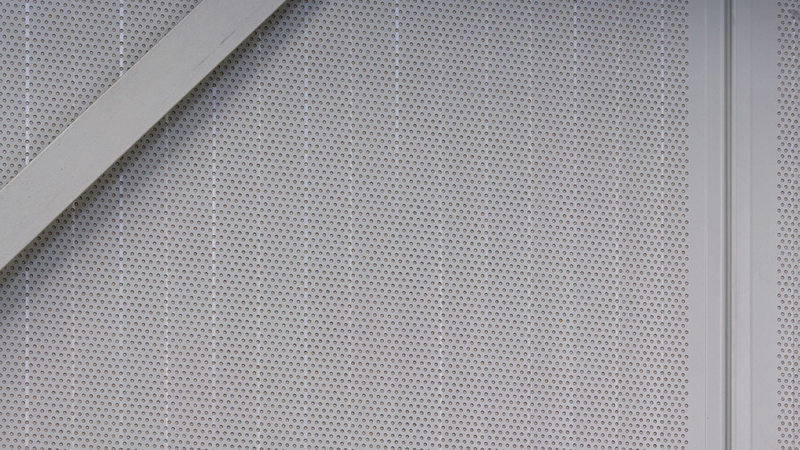

Trimoterm acoustic панель

Файлы для скачивания
